The FTTH Cable Production line is a unified series of modules that transforms optical fiber into ready-to-ship drop and distribution outputs with reliable uniform quality.

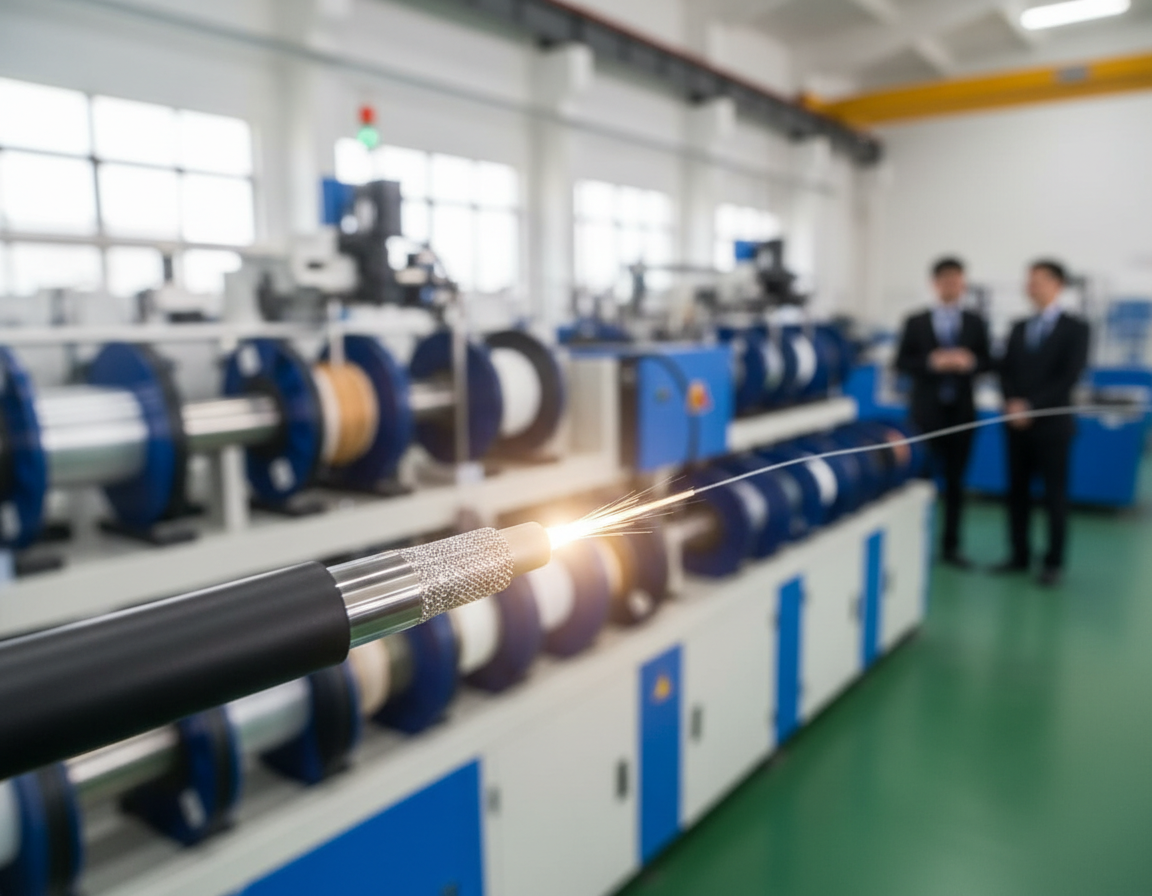

FTTH Cable Production Line
This introduction guides plant managers, process engineers, sourcing teams, and students in the U.S. who evaluate how industrial manufacturing equipment shapes delicate fiber into rugged cable assemblies for broadband service and communications networks.
Fundamentally, the end-to-end objective is simple: protect the fiber, keep attenuation low, build in installation strength, and deliver a product that holds up to both indoor and outdoor environments.
Top-tier equipment delivers reliable tension regulation, coordinated drive systems, standardized process windows, and clear documentation for customer acceptance. The article helps pair the right line configuration, materials, and test plan to the intended product instead of buying machines first and correcting later.
Readers will map stages such as fiber handling and preparation, buffering and coating, organization/stranding, strength member integration, jacketing (outer sheath extrusion), optional armoring, and final testing and packaging.
Key points: A properly specified line minimizes defects and supports predictable delivery. Lock in process alignment before equipment purchase to reduce time and cost.
How A Fiber Optic Cable Production Line Operates Today
Where last-mile drop and distribution requirements meet shop-floor execution.
Modern production lines convert fine glass fiber into finished products used in U.S. broadband rollouts. Last-mile drop cable and ftth drop demand drives high volumes, so manufacturers emphasize repeatable handling and standards-based output.
Core Modules & Material Flow
Material moves through a clear sequence: pay-off feed → guiding and tensioning → secondary coating/color application → organization and SZ stranding → strength member feed → jacketing/sheathing → cooling / curing → take-up and in-line testing.
Modules To Outcomes
Consistent fiber handling reduces attenuation and protects signal integrity for data and communications. Consistent jacketing aids installation and connector preparation. Inline monitors catch loss events before reels ship.
- Indoor vs. outdoor: different jacket compounds and buffering.
- Armored variants add steel tape or wire to improve rodent and crush resistance.
- Drop designs favor tight-buffered fibers and simplified connector prep.
Procurement teams should see lines as modular. Plants add armoring or skip steps to fit the product type. Output limits often come from curing and dimensional stability, not simply motor speed.
Define Your Product And Data Standards Before You Buy Equipment
Kick off with a clear product definition that defines the cable type, fiber/core count, service environment, and user scenarios. Early definition limits which modules the line needs, from tight-buffer units to SZ stranding capability and jacket extrusion systems.
Select Standards & Measurable Targets
Pick fiber standards such as ITU-T G.652D single-mode or bend-insensitive ITU-T G.657A1/A2 based on bend requirements and routing constraints. Record optical loss budgets, tensile strength, crush/bend limits, and environmental durability targets before choosing a supplier.
- Map the exact product type and core/fiber count to define modules and control needs.
- Set loss budgets and strength targets to steer material selection.
- Define required materials (buffer polymers, jacket compounds) and confirm supplier availability in the U.S.
Data Standards, Traceability & Validation
Translate targets into factory information: captured process variables, lot traceability, and customer-required acceptance test reports. Plan R&D pilot runs to validate settings and reduce scale-up time.
Fiber Coloring Machine
| Target | Manufacturing Implication | Typical Action |
|---|---|---|
| Low loss | Control of tension and alignment | In-line attenuation checks |
| Strong mechanical performance | Strength-element selection | Aramid/metal integration |
| Bend-tolerant performance | Selecting the fiber type | Use G.657 variants |
Build Quality Into The Optical Fiber: Core, Cladding, And Coating Essentials
High-quality optical performance starts in the glass, where core purity and cladding design set the ceiling for signal loss.
Core and cladding form the central layer structure: a solid, ultra-pure silica core transports light while lower-index cladding keeps it confined. This geometry underpins low-loss transmission and stable optical behavior once cabled.
From Preform To Drawn Fiber
Production starts with preform laydown and consolidation. Removing moisture in a high-temperature furnace reduces defects that increase attenuation.
The draw step pulls glass into a micron-scale strand. Geometry control at this stage links directly to steady attenuation and predictable transmission performance. A single blank can yield roughly 5 km of fiber, so stability saves time and cost.
Primary Coating & Color Coding
Primary coating protects against scratches and handling damage; it is not the primary strength element. Color ID makes splicing, troubleshooting, and downstream fiber management easier.
- Preform consolidation: eliminate contaminants and moisture.
- Draw: control diameter and tension for low loss.
- Coating and color: protect and identify each fiber.
| Layer Element | Purpose | Buyer Checklist |
|---|---|---|
| Fiber core | Carry light with minimal attenuation | Specify purity and loss specs |
| Cladding layer | Confine light, control modal behavior | Confirm refractive index profile and geometry |
| Primary coating layer | Scratch protection; color identification | Check adhesion and color coding |
FTTH Cable Production: Step-By-Step Line Setup From Buffering To Sheathing
A practical line setup walks each fiber from pay-off through buffering, stranding, and outer jacket to a finished reel.
Secondary coating & fiber coloring stations apply dual-layer UV-cured coatings (≈250 µm) and 1–12 channel color coding for identification and traceability. Consistent UV cure rates and steady web tension reduce mix-ups and rework.
Buffering And Materials
Tight buffering (600–900 µm) protects handling and simplifies connector preparation. Choice of Hytrel, PVC, or LSZH changes flexibility, temp range, and flame/smoke behavior.
SZ Stranding And Organization
SZ stranding uses an alternating lay to balance geometry and provide flexibility. Servo control for up to 24 fibers keeps lay pitch consistent and reduces attenuation risk.
Strength Members & Jacketing
Aramid yarn is the standard tensile element; it delivers pull strength without stressing fibers during installation.
Outer jacket extrusion using PVC, PE, or LSZH follows. Typical speeds are 60–90 m/min and require tight OD and concentricity control.
Armoring, Control Points
When crush or rodent resistance is required, add steel tape or wire armor with adjustable tension control. Operators track tension, cure state, concentricity, OD, and cooling to maintain quality.
| Stage | Key Control | Typical Spec |
|---|---|---|
| Secondary coating stage | UV cure plus tension | ≈250 µm, high cure consistency |
| Tight buffering | Choice of material | 600–900 µm (Hytrel/PVC/LSZH) |
| Sheathing | OD and concentricity | Typically 60–90 m/min |
Optimize Production Speed And Process Control With Modern Automation
When factories run for 24/7 output, synchronized controls and tension systems become the backbone of reliable manufacturing.
PLC, HMI & Closed-Loop Tension For Steady Operation
Modern lines use Siemens PLC + HMI platforms to synchronize modules, manage recipes, and record process information. Closed-loop tension control protects the fiber during starts, stops, and speed changes.
Fiber Secondary Coating Line
Match Speed To Curing And Dimensional Control
Line speed often caps where curing, cooling, or extrusion dimensional control cannot keep up. UV cure completeness, water-trough stability, and chiller capacity define the real limit.
Layout, Changeover & Procurement
Factory layout affects uptime: proper pay-off/take-up placement and protected fiber paths reduce damage and shorten changeovers.
- Design quick-change tooling and documented setup procedures to reduce changeover time.
- When ordering equipment, specify industrial power (380 V AC ±10%) and typical load ≤55 kW.
- Require remote diagnostics, parts availability, and service response from the equipment company.
| Focus | Operational Benefit | Typical Standard |
|---|---|---|
| System synchronization | Lower scrap, repeatable runs | Siemens PLC/HMI platform |
| Closed-loop tension | Protects fiber; stable loss | Closed-loop with high accuracy |
| Layout/changeover | Reduced downtime | Quick-change tooling and staging |
Testing And Quality Control To Reduce Loss And Improve Delivery Reliability
Robust testing and clear quality control turn raw fiber into reliable, field-ready cable reels.
Begin with optical verification. Inline attenuation testing and return loss checks confirm signal performance before reels leave the line.
Optical Checks, Signal Integrity
Attenuation testing is the main guardrail against performance complaints. Higher loss values typically point to handling damage, microbends, or contamination.
Return loss checks target reflections that can affect sensitive links and tight network margins.
Mechanical, Environmental Validation
- Tensile pull tests validate strength members and safe installation loads.
- Crush and bend tests simulate real-world stresses during installation.
- Temperature cycling, moisture soak, and vibration tests de-risk outdoor and aerial routes.
| Test | Why It’s Done | Typical Outcome |
|---|---|---|
| Attenuation test | Measure loss per kilometer | Pass/fail against specification |
| Mechanical | Confirm pull/crush/bend performance | Installation rating |
| Environmental validation | Simulate field conditions | Durability verification |
Traceability connects raw material lots, inline data, and final test results to reel IDs. Correct reeling, labeling, and protective packaging preserve quality and speed customer acceptance and delivery.
Wrap-Up
A clear manufacturing plan links product targets to the exact line modules and control limits required for reliable output. Specify the FTTH product, service environment, and measurable specs before selecting equipment or finalizing layout.
Fiber fundamentals (core, cladding, coating) establish the optical baseline. Careful handling upstream preserves data integrity and keeps end-product quality within acceptance limits.
Set buffering, organization/stranding, strength members, and jacket selection to match installation conditions. Use automation and closed-loop controls to maintain speed, reduce scrap, and keep delivery predictable in U.S. markets.
Operational discipline matters: use comprehensive testing, reel-level traceability, and documented quality systems so customers can accept reels fast. Next step: turn these points into a purchasing checklist (spec targets, utilities, layout, acceptance tests) before requesting quotes or conducting trials.
